Ferrite

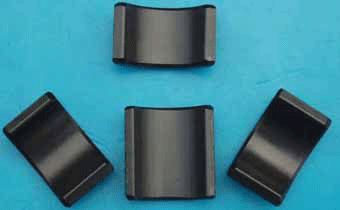

Ferrite Magnet Material

*Download: Catalogue of Ferrite Magnets  (3.38MB)

Ferrite

Chinese standard
Type Standard same with TDK Br(mT) HcB(kA/m) Hcj(kA/m) (BH)max(KJ/m3)
Y10T 200-235 125-160 210-280 6.5-9.5
Y20 320-380 135-190 140-195 18.0-22.0
Y22H 310-360 220-250 280-320 20.0-24.0
Y23 320-370 170-190 190-230 20.0-25.5
Y25 360-400 135-170 140-200 22.5-28.0
Y28H-3

FB5E

370±15 293±15 395±15 27±2
Y29H-1 FB6E 380±10 290±15 395±15 27±1.6
Y30H-1 FB3N 390±10 245±15 255±20 29.5±2.5
Y30H-2 FB5H 405±10 290±15 325±15 30.5±2
Y30H-3 FB4B 400±10 245±15 258±15 30±2.0
Y30H-4 FB6H 400±10 305±15 360±15 30±1.6
Y30H-5   400±10 300±15 400±15 30±1.6
Y32 FB4A 410±10 175±15 180±15 32±1.8
Y33 FB4X 420±10 235±15 240±15 33±1.8
Y33H FB5B 420±10 265±15 270±15 33±2.0
Y33H-2 FB6B 420±10 300±15 320±15 33.4±1.6
Y34H-1   430±10 245±15 255±15 34±1.6
Y34H-2   430±10 260±15 280±15 34±1.6
Y34H-3   430±10 285±15 290±15 34±1.6
Y35 FB5N 440±10 230±15 235±15 35±1.6
Y36 FB6N 440±10 259±12 362±12 36.7±1.6
Y38   450±10 295±10 300±10 38.6±2
Y40 FB9B 450±10 340±15 350±10 39.8±2.1
USA standard

Material

Br

Hcb

Hcj

(BH)max

mT

KG

KA/m

KOe

KA/m

KOe

KJ/m3

MGOe

C1

230

2.3

148

1.86

258

3.5

8.36

1.05

C5

380

3.8

191

2.4

199

2.5

27

3.4

C7

340

3.4

258

3.23

318

4.00

21.9

2.75

C8(C8A)

385

3.85

235

2.95

242

3.05

27.8

3.5

C9

380

3.8

280

3.516

320

4.01

26.4

3.32

C10

400

4.0

288

3.617

280

3.51

30.4

3.82

C11

430

4.3

200

2.512

204

2.56

34.4

4.32



Europe standard

The standard from International Electronics Committee (IEC404-8-1)

O×100=Y10T=C1   O×300=Y30=C5   O×330=Y30BH

Grade



Allowed Value (min/typical)

Br

Hcb

Hcj

(BH)max

mT

KG

KA/m

KOe

KA/m

KOe

KJ/m3

MGOe

HF8/22

200/220

2.00/2.20

125/140

1.57/1.76

220/230

2.76/2.89

6.5/6.8

0.8/1.1

HF20/19

320/333

3.20/3.33

170/190

2.14/2.39

190/200

2.39/2.51

20.0/21.0

2.5/2.7

HF20/28

310/325

3.10/3.25

220/230

2.76/2.89

280/290

3.52/3.64

20.0/21.0

2.5/2.7

HF22/30

350/365

3.5/3.65

255/265

3.20/3.33

290/300

3.64/3.77

22.0/23.5

2.8/3.0

HF24/16

350/365

3.5/3.65

155/175

1.95/2.20

160/180

2.01/2.26

24.0/25.5

3.0/3.2

HF24/23

360/370

3.5/3.65

220/230

2.76/2.89

230/240

2.89/3.01

24.0/25.5

3.0/3.2

HF24/35

370/380

3.60/3.70

260/270

3.27/3.39

350/360

4.40/4.52

24.0/25.5

3.0/3.2

HF26/16

370/380

3.70/3.80

155/175

1.95/2.20

160/180

2.01/2.26

26.0/27.0

3.2/3.4

HF26/18

370/380

3.70/3.80

175/190

2.20/2.39

180/190

2.26/2.39

26.0/27.0

3.3/3.4

HF26/24

370/380

3.70/3.80

230/240

2.89/3.01

240/250

3.01/3.14

26.0/27.0

3.3/3.4

HF26/26

370/380

3.70/3.80

230/240

2.89/3.01

260/270

3.27/3.39

26.0/27.0

3.3/3.4

HF26/30

385/395

3.85/3.95

260/270
