□镍锌系列 (返回)
|

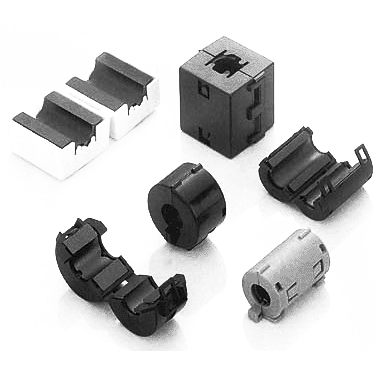

Split Cores For Round
Cable [Ni - Zn]
UNIT: m/m
| TYPE |
|
A |
B |
C |
D |
E
|
IMPE
|
DANCE
|
| UNIT |

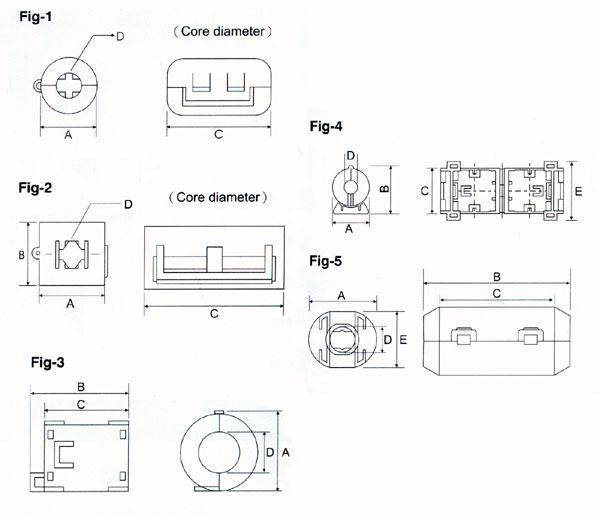

FIG |
mm |
mm |
mm |
mm |
mm |
25MHz(Ω) |
100MHz(Ω) |
| UF-35 |
1 |
13 |
25.2 |
20 |
5 |
11.5 |
90 |
130 |
| UF-35B |
1 |
13 |
25.2 |
20 |
5 |
11.5 |
55 |
130 |
| UF-50 |
1 |
16 |
|
29.5 |
5 |
|
60 |
120 |
| UF-65 |
2 |
17.5 |
19.5 |
32.5 |
6.5 |
|
120 |
230 |
| UF-70 |
3 |
15.4 |
22 |
17.7 |
7.4 |
|
35 |
60 |
| UF-90A |
3 |
20 |
35.4 |
31 |
9.4 |
|
60 |
130 |
| UF-90B |
5 |
19.5 |
35 |
28 |
9 |
17.4 |
60 |
130 |
| UF-100 |
2 |
22 |
23 |
32.5 |
10 |
|
90 |
180 |
| UF-130 |
2 |
29 |
30 |
32 |
13 |
|
120 |
200 |
| UFR-16-13-8 |
4 |
19.8 |
23.4 |
16.5 |
8 |
22.9 |
35 |
80 |
| UFR-16-16-8 |
4 |
19.8 |
23.4 |
19.5 |
8 |
25.9 |
55 |
120 |
| UFR-20-10-10 |
4 |
24 |
28 |
13 |
10 |
19.5 |
35 |
70 |
| UFR-24-14-11 |
4 |
28 |
32 |
17.5 |
11.4 |
23.9 |
40 |
90 |
| UFR-25-12-15 |
4 |
28.5 |
32.5 |
15.4 |
13.6 |
21.8 |
30 |
60 |
|
|
|
|
 |
-----------------------------------------------------------------------------------------------------------------------------------
